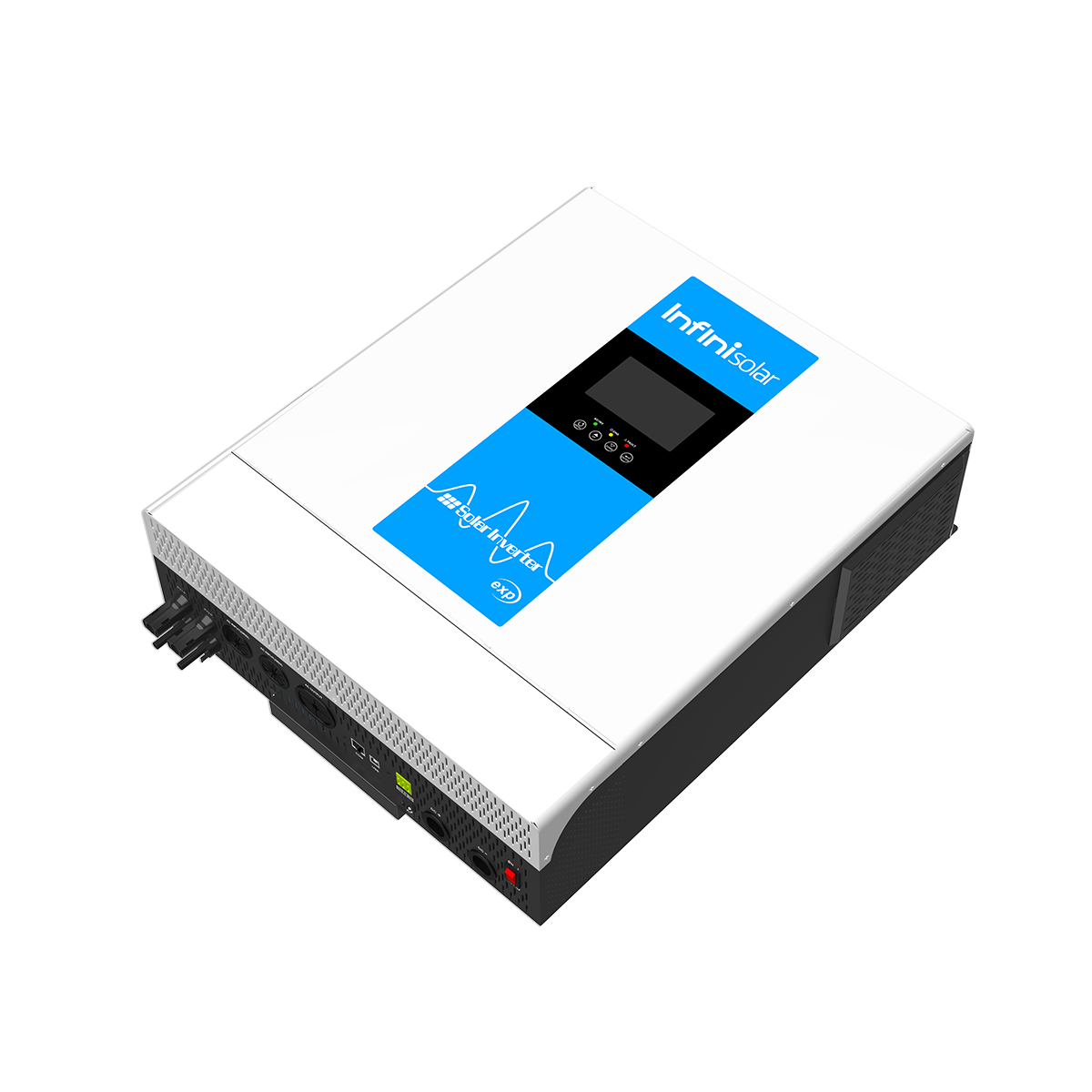

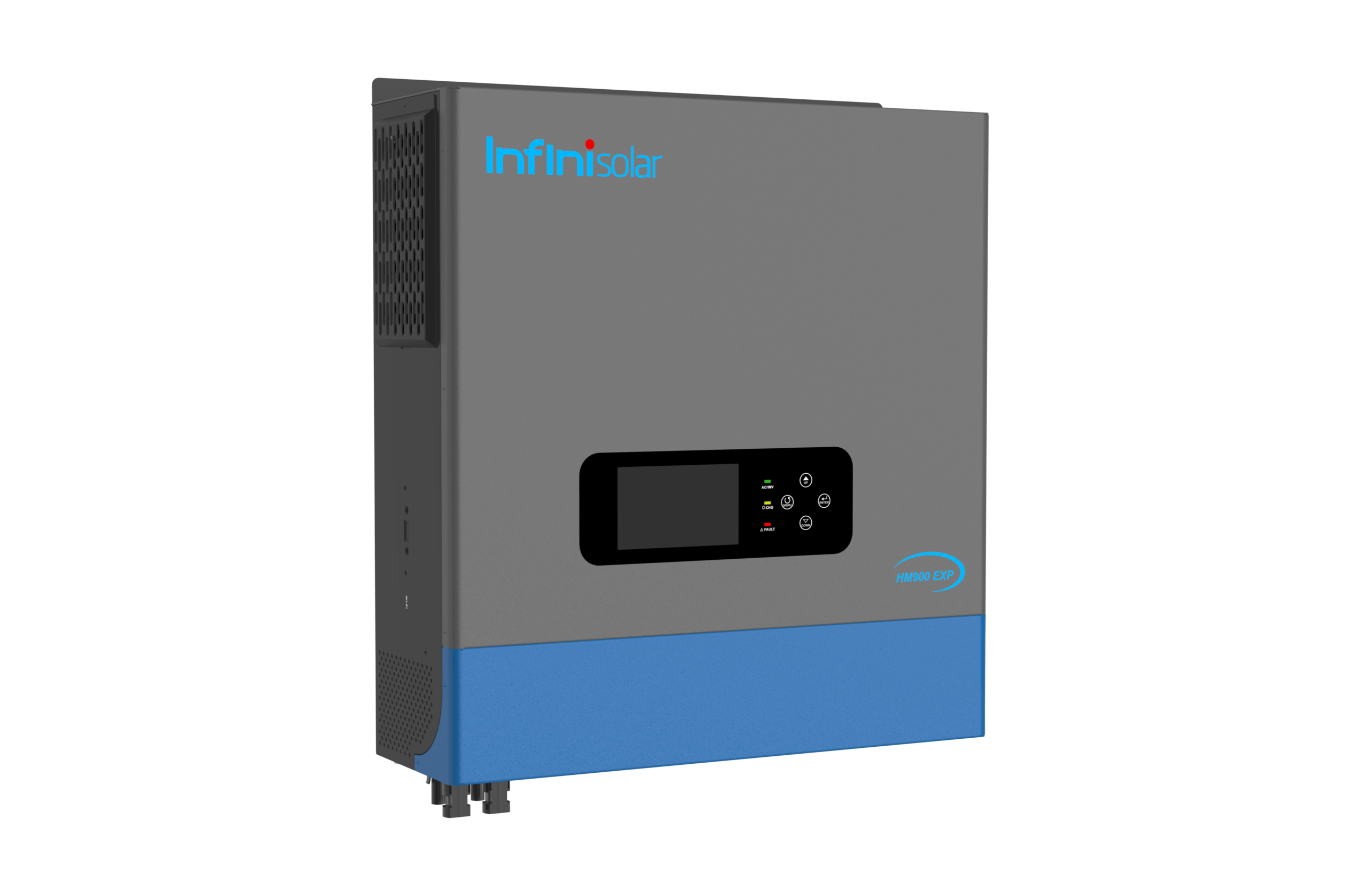

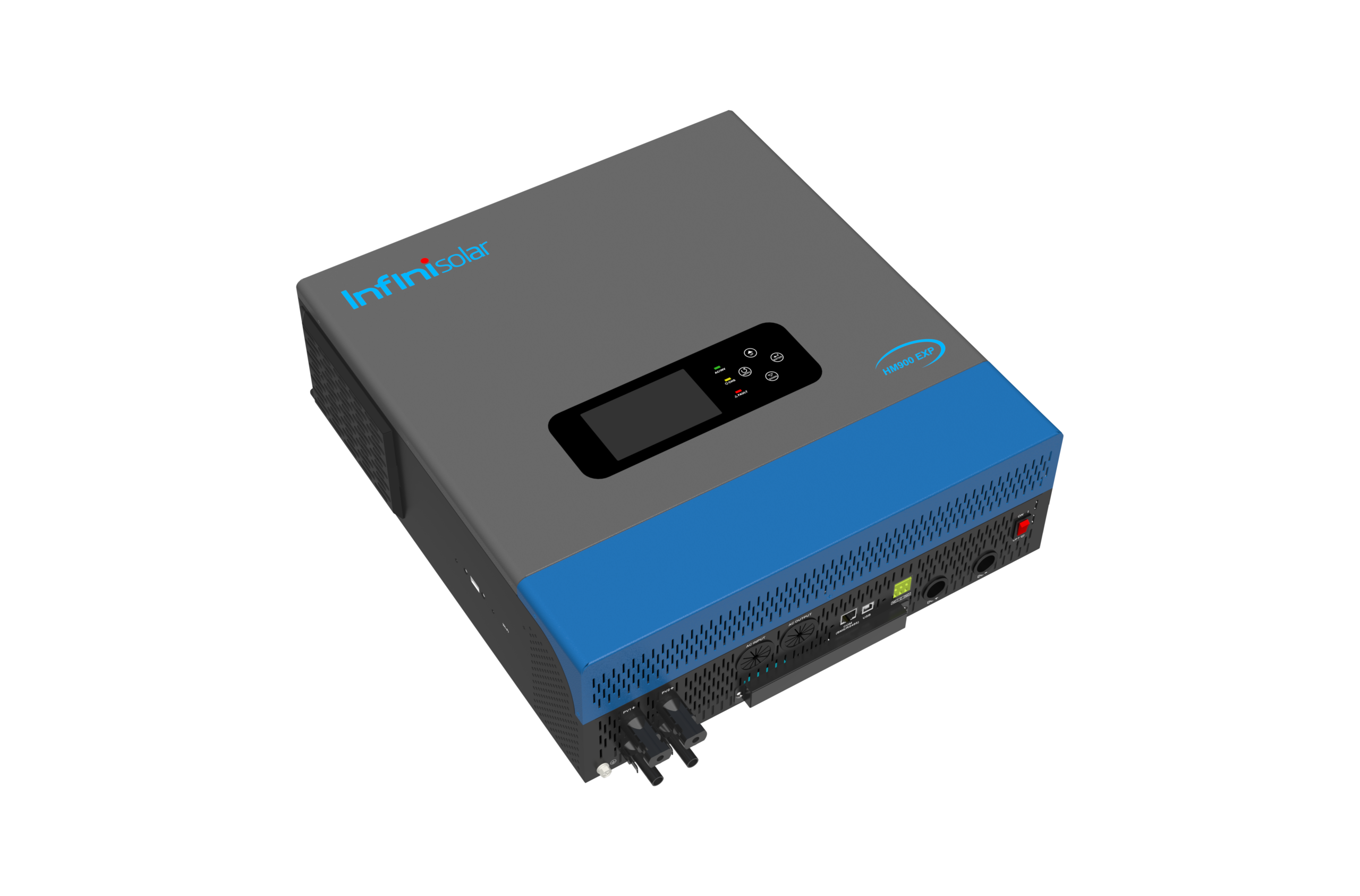

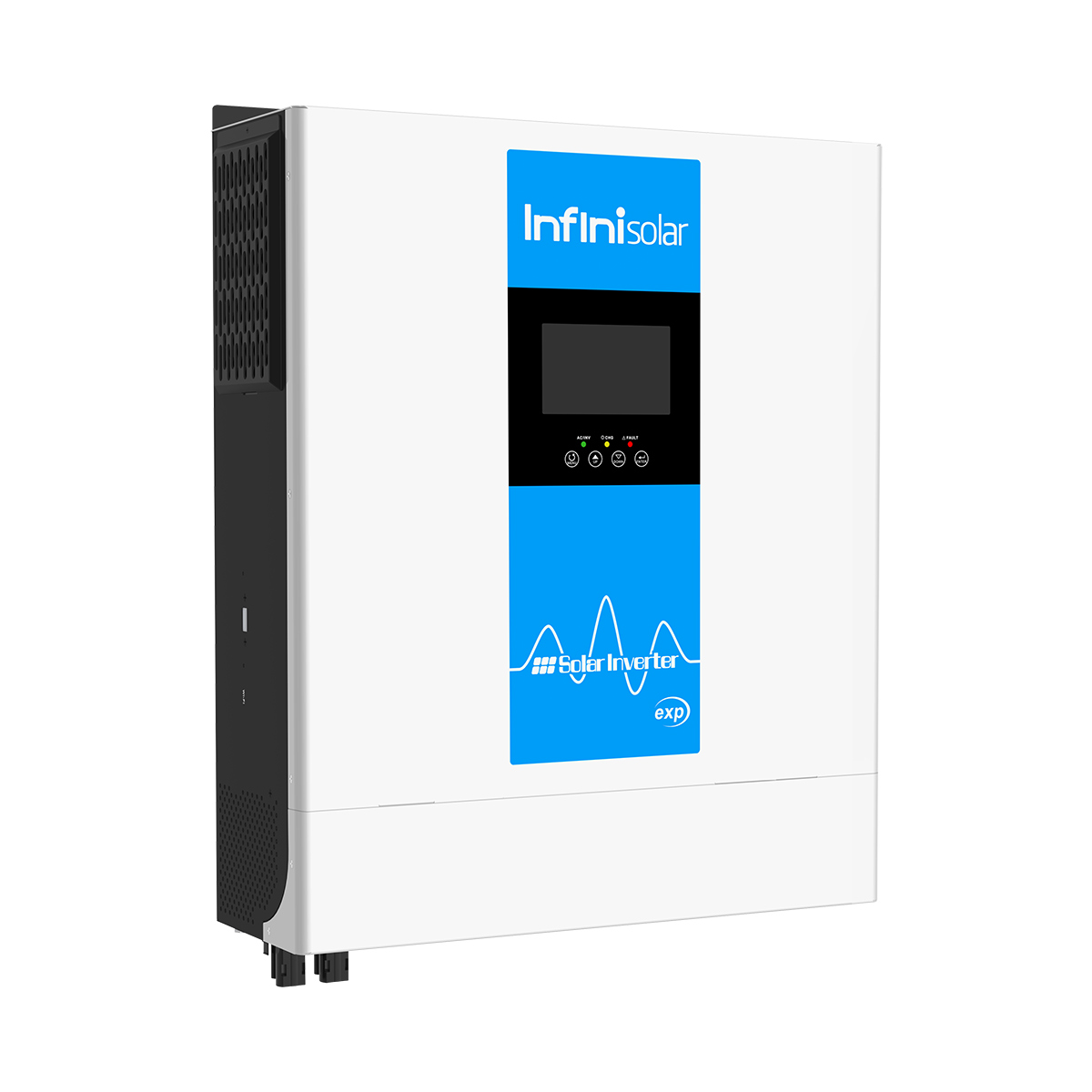

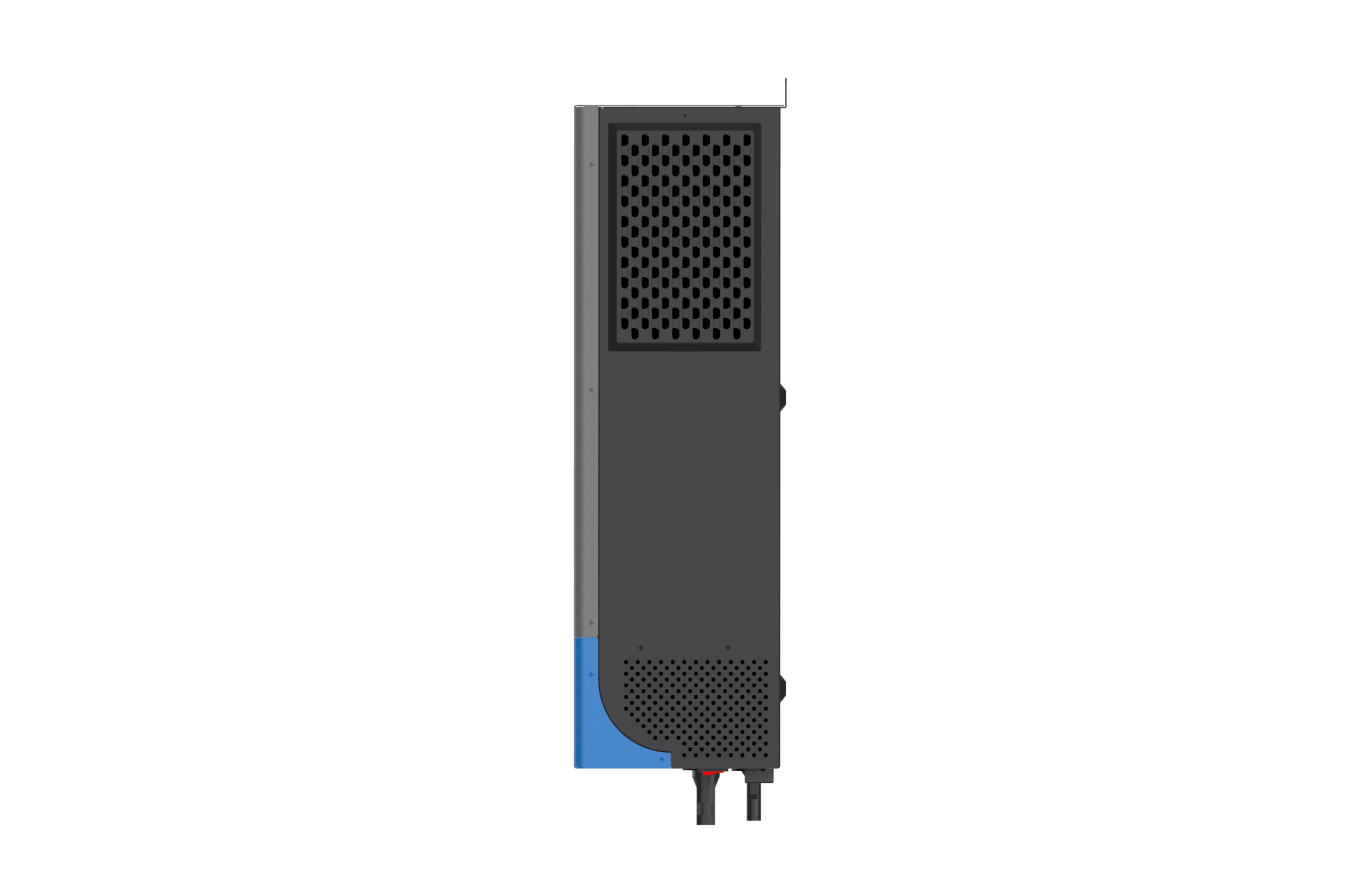

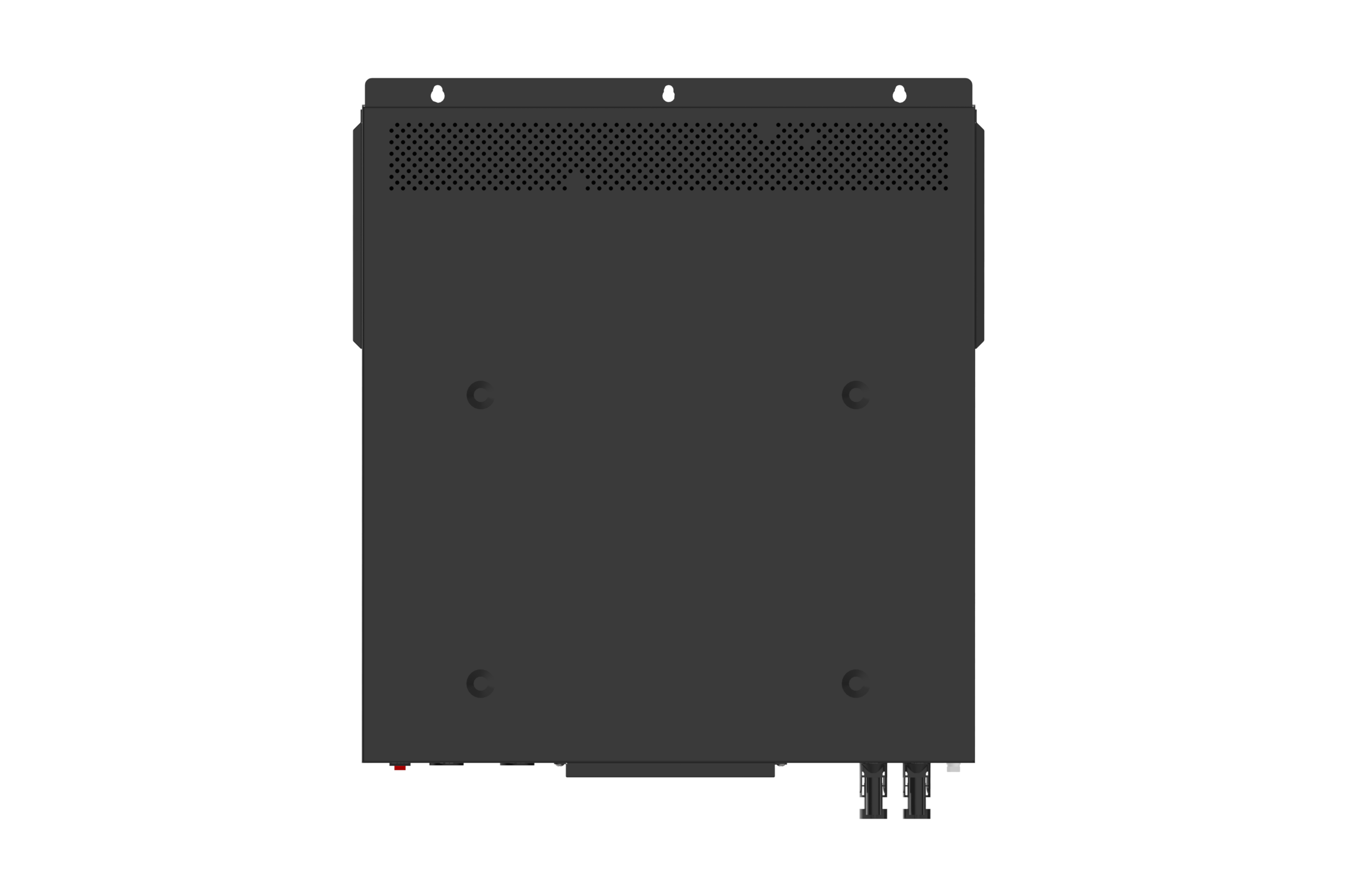

HMEXP900 Hybrid Solar Inverter 6.2KW
Dual output hybrid inverter DC 48V | PV 500V
HM900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. HM900 EXP Series can run without battery.
The Maximum PV input voltage can reach 500V and MPPT voltage range is 90~450Vdc, built-in two MPPTs solar charge controller, which can help customers make full use of solar energy
Description
Product Description
■ Dual output for smart load management
■ Smart color LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in Two MPPTs solar charge controller
■ Wide MPPT voltage range is 90~450V, the maximum PV input voltage can reach 500V (450V for parallel)
■ Can provide the power to the load without battery
■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ With BMS lithium battery communication function
■ With AC/PV lithium battery activation function
■ Support USB, RS485 monitoring function
■ Parallel operation up to 6 units
■ WIFI remote monitoring
| MODEL | HM900-6248 EXP | HM900-8048 EXP | HM900-10048 EXP | HM900-11048 EXP | HM900-12048 EXP |
| Default Battery System Voltage | 48VDC | ||||
| INVERTER OUTPUT | |||||
| Rated Power | 6200VA/6200W | 8000VA/8000W | 10000VA/10000W | 11000VA/11000W | 12000VA/12000W |
| Surge Power | 12400W | 16000W | 20000W | 22000W | 24000W |
| Waveform | Pure sine wave | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | ||||
| Inverter Efficiency(Peak) | 92% | ||||
| Transfer Time | 10ms(UPS / VDE4105) / 20ms(APL) | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Max AC Input Voltage | 300VAC | ||||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) | ||||
| Frequency Range | 50Hz / 60Hz (Auto sensing) | ||||
| BATTERY | |||||
| Normal voltage | 48VDC | ||||
| Floating Charge Voltage | 54.8VDC | ||||
| Overcharge Protection | 60VDC | ||||
| SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 500VDC (450V for parallel) | ||||
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | ||||
| Maximum PV Array Power | 4000W*2 | 4000W*2 | 5000W*2 | 6000W*2 | 6000W*2 |
| Maximum PV Input Current | 18A*2 | 18A*2 | 27A*2(40A max) | 27A*2(40A max) | 27A*2(40A max) |
| PV Array MPPT Voltage Range | 90~450VDC (90~430VDC for parallel) | ||||
| Min Battery Voltage For PV charge | 34VDC | ||||
| Maximum Solar Charge Current | 120A | 120A | 150A | 150A | 150A |
| Maximum AC Charge Current | 100A | 120A | 150A | 150A | 150A |
| Maximum Charge Current | 120A | 120A | 150A | 150A | 150A |
| MECHANICAL SPECIFICATIONS | |||||
| Machine Dimension (W*H*D) | 425*473*145mm | 425*527*145mm | |||
| Package Dimension (W*H*D) | / | / | / | / | / |
| N.W (kg) | / | 17.4 | 17.4 | / | 17.6 |
| G.W (kg) | / | / | / | / | / |
| OTHER | |||||
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) | ||||
| Operating Temperature | 0°C~50°C | ||||
| Storage Temperature | -15°C -60°C | ||||
| Warranty | 2 year | ||||
| CERTIFICATION & STANDARDS | |||||
| CE | |||||
