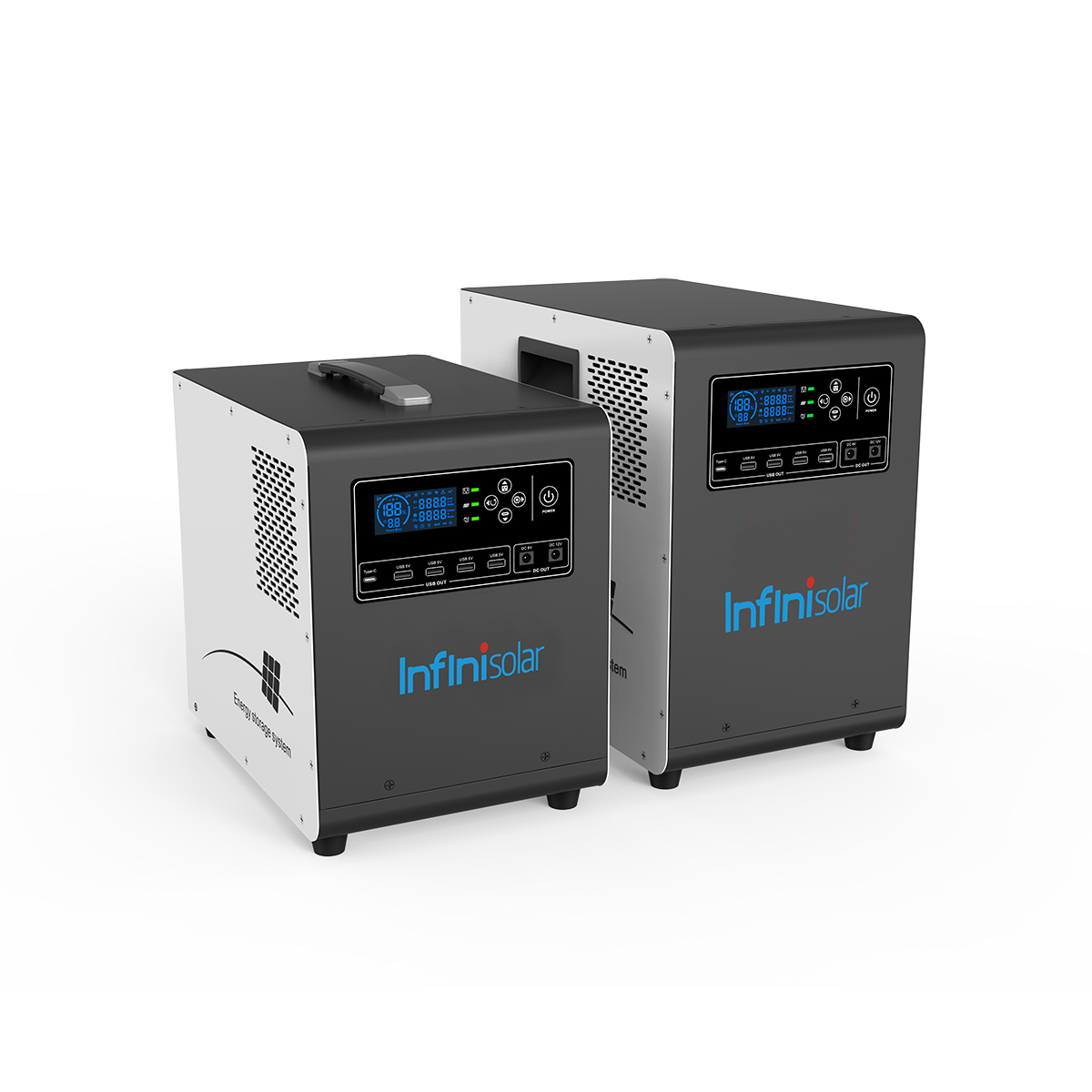

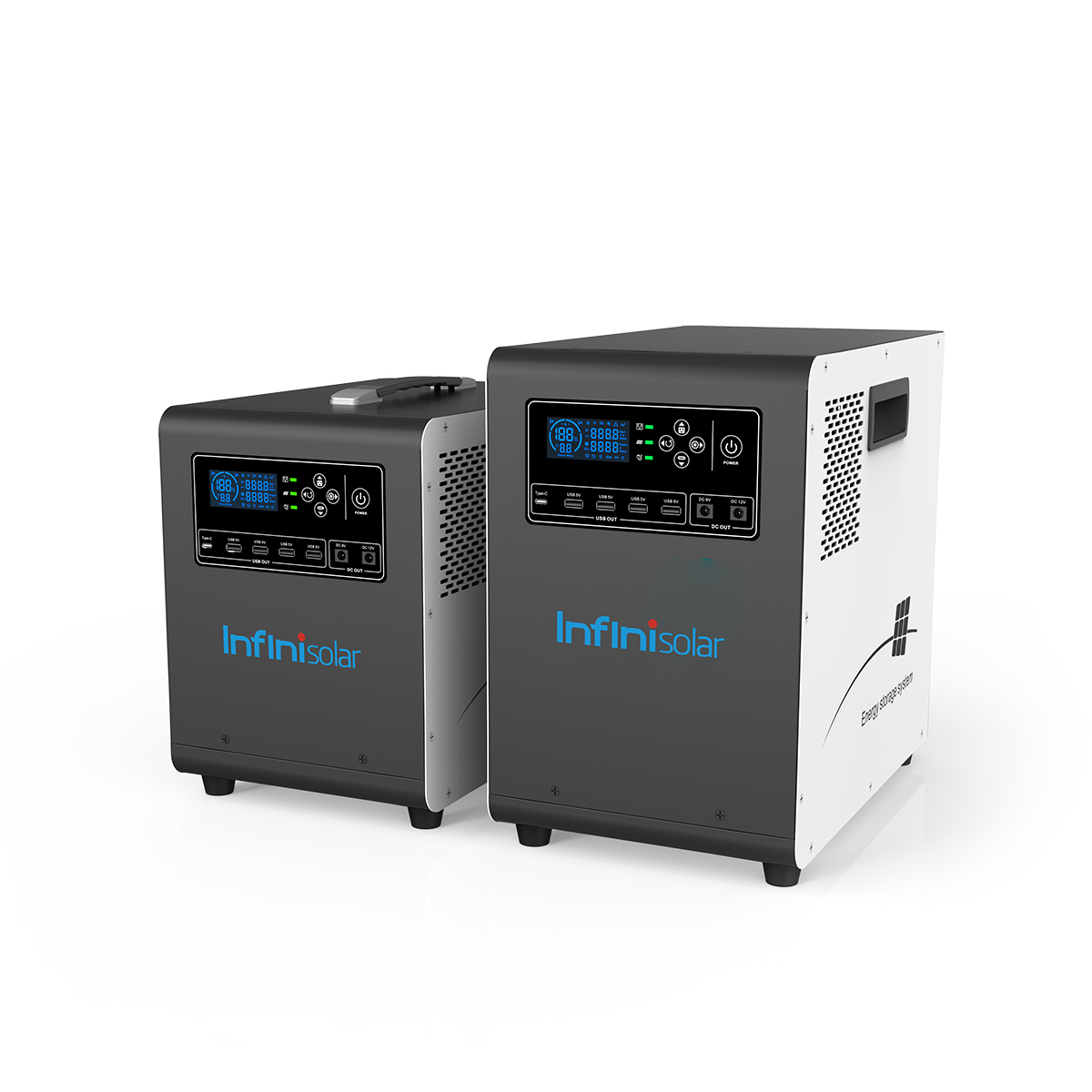

HMP150 Portable power station 1/2KVA
Solar portable power station 12V/24V | 538Wh/1076Wh
The HMP150 series is a versatile portable power station suitable for powering various household appliances such as TVs, stereos, laptops, and desktop computers. It is equipped with a built-in LiFePO4 battery pack at home or office, it is a backup power provide uninterrupted power supply, at the same time, it a great choice for outdoor camping as well.
Description
Product Description
■ Portable and easy carry
■ Multiple Charging Ways Available: AC Charging, Solar Charging
■ HD Screen: the power status is clear at a glance
■ Multiple outputs can supply power for various electrical appliances.
■ Intuitive battery endurance indicate
| Model | HMP150-1012 | HMP150-2024 |
| Nominal Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT | ||
| Rated Power | 1000VA / 600W | 2000VA / 1200W |
| Waveform | Pure Sine Wave | |
| Nominal Output Voltage RMS | 230V | |
| Output Voltage Regulation | +10/-18% | |
| Output Frequency | 50Hz / 60Hz ± 0.5Hz | |
| Inverter Efficiency (Peak) | >90% | |
| Line Mode Efficiency | >95% | |
| Typical Transfer Time | Typical < 10ms , 20ms max | |
| AC INPUT | ||
| Voltage Nominal | 230VAC | |
| Voltage Range | 176 ~ 278VAC ± 3% | |
| Frequency Range | 45 ~ 65Hz ± 2Hz | |
| Frequency Nominal | 50Hz / 60Hz (Auto Detection) | |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum AC Charge Current | 20A | 15A |
| Maximum PV Charge Current | 40A (max) | |
| Maximum Charge Current AC+PV | 40A (max) | |
| Maximum PV Array Power | 600W | 1200W |
| MPPT Operating Voltage Range | 15 ~ 75VDC | 30 ~ 75VDC |
| Maximum PV Array Open Voltage | 100VDC | |
| Maximum Efficiency | > 95% | |
| DC OUTPUT | ||
| USB Type A | 5V 2.1A * 4ch | |
| USB Type C | 5V 2.1A * 1ch | |
| DC output | 9V 1A + 12V 1A | |
| PROTECTION | ||
| Battery Input Protection | FUSE | |
| Load Output Protection | FUSE | |
| Bypass Fuse Rating | 6.3A | 10A |
| LITHIUM BATTERY | ||
| Battery Energy | 538Wh | 1076Wh |
| Nominal Input Voltage | 12.8VDC (4 Series LiFePO4) | 25.6VDC (8 Series LiFePO4) |
| Low Battery Cutoff | 11.5VDC | 23.0VDC |
| Low Battery Alarm | 12.0VDC | 24.0VDC |
| Low Battery Voltage Recover | 12.8VDC | 25.6VDC |
| High Battery Voltage Recover | 14.5VDC | 29.0VDC |
| High Battery Voltage Cutoff | 15.0VDC | 30.0VDC |
| MECHANICAL SPECIFICATIONS | ||
| Machine Dimensions (W*H*D) | 225* 304*335mm | 225* 380*354mm |
| Package Dimensions (W*H*D) | 307* 375 *417mm | 307*430 *462mm |
| Net Weight | 11kg | 16kg |
| Gross Weight | 13kg | 18kg |
| OTHER | ||
| Operation Temperature Range | 0°C to 45°C | |
| Display | LED+LCD | |
