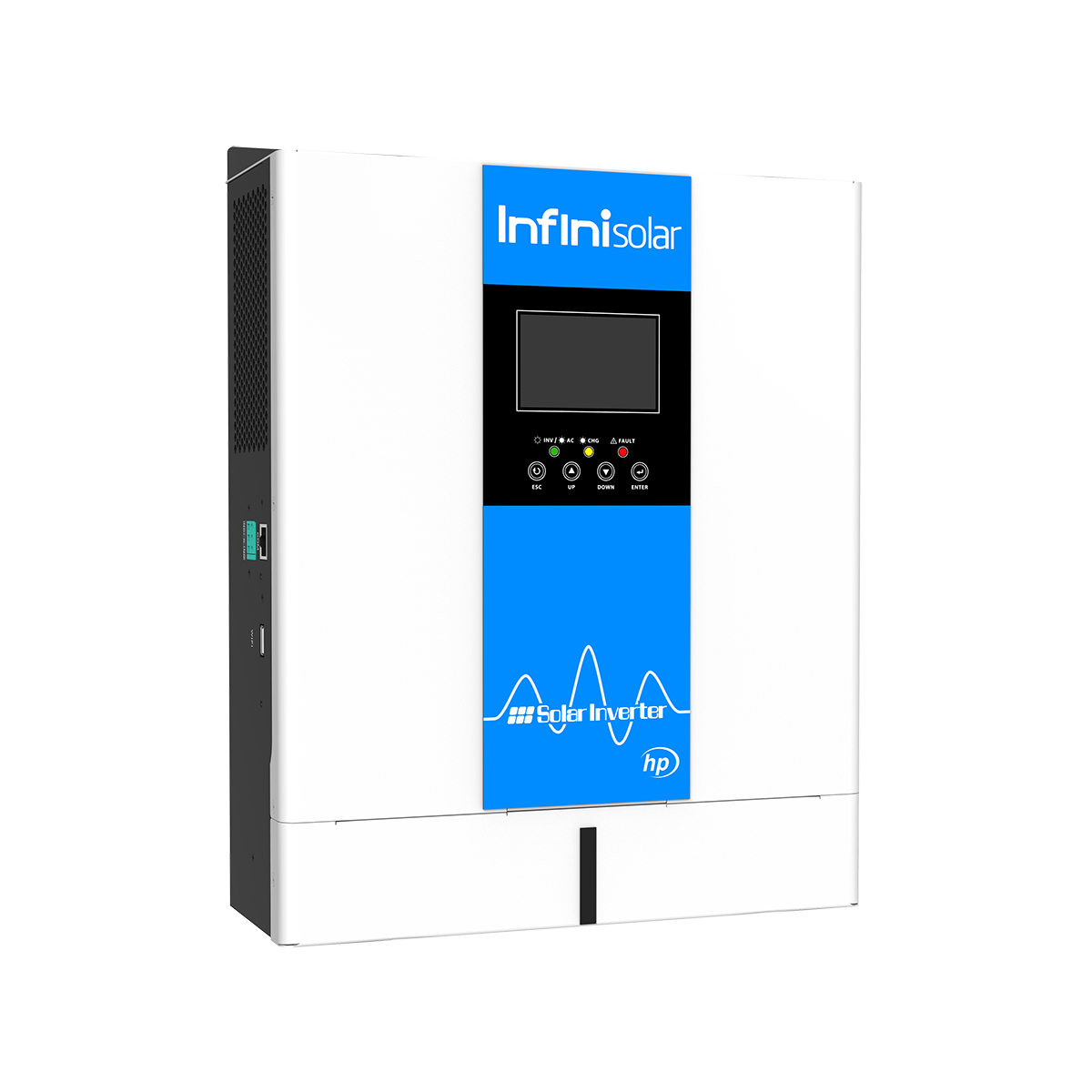

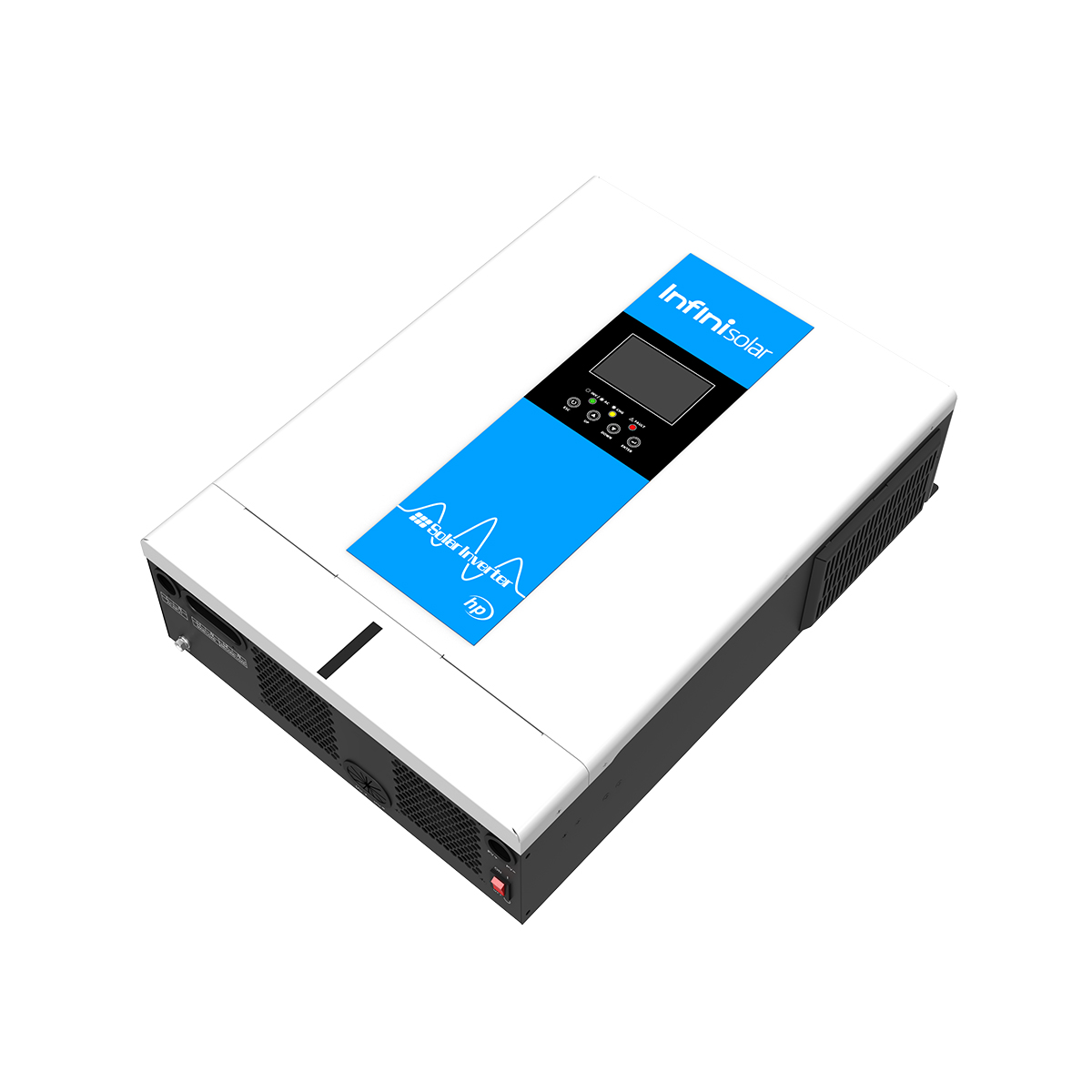

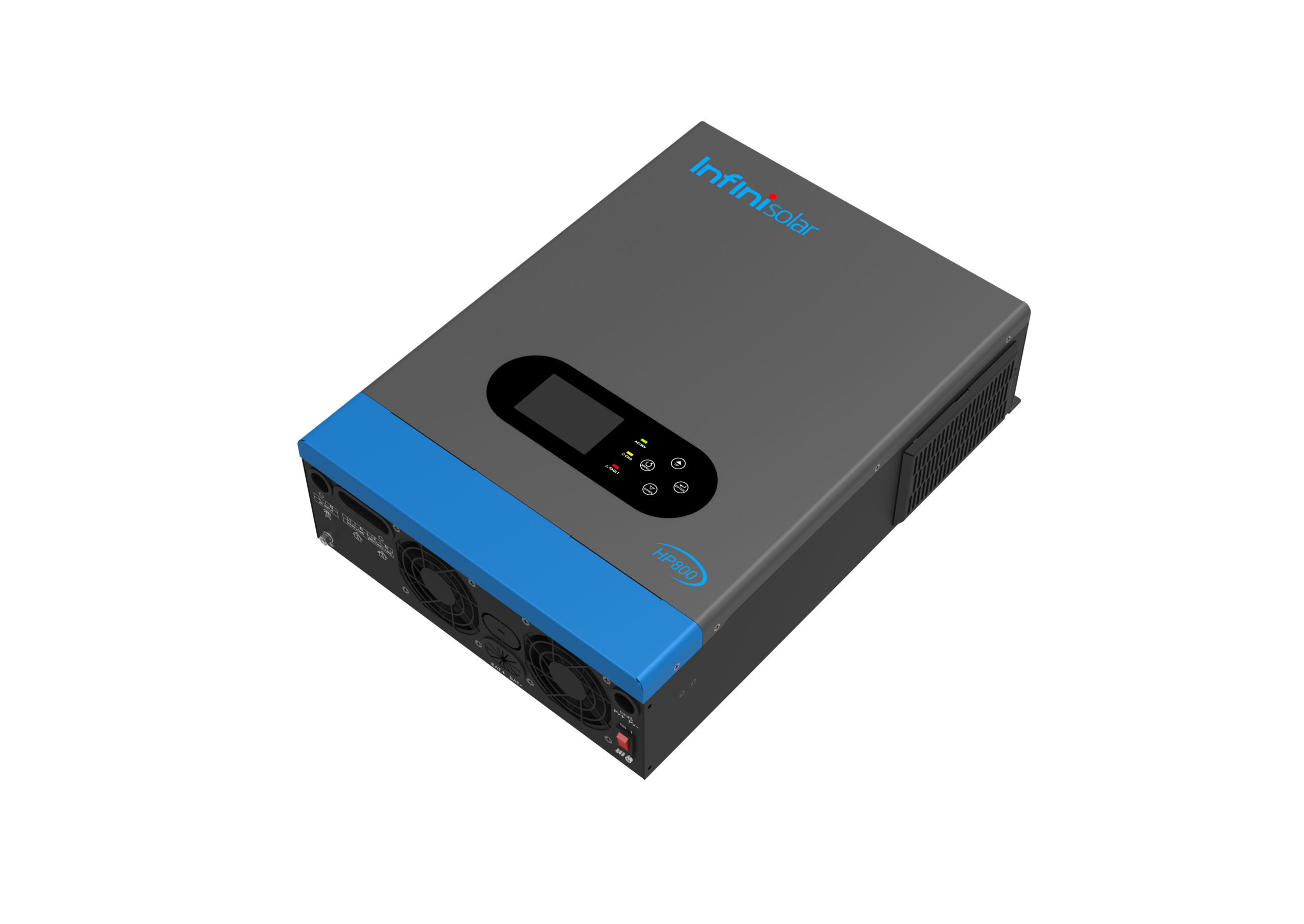

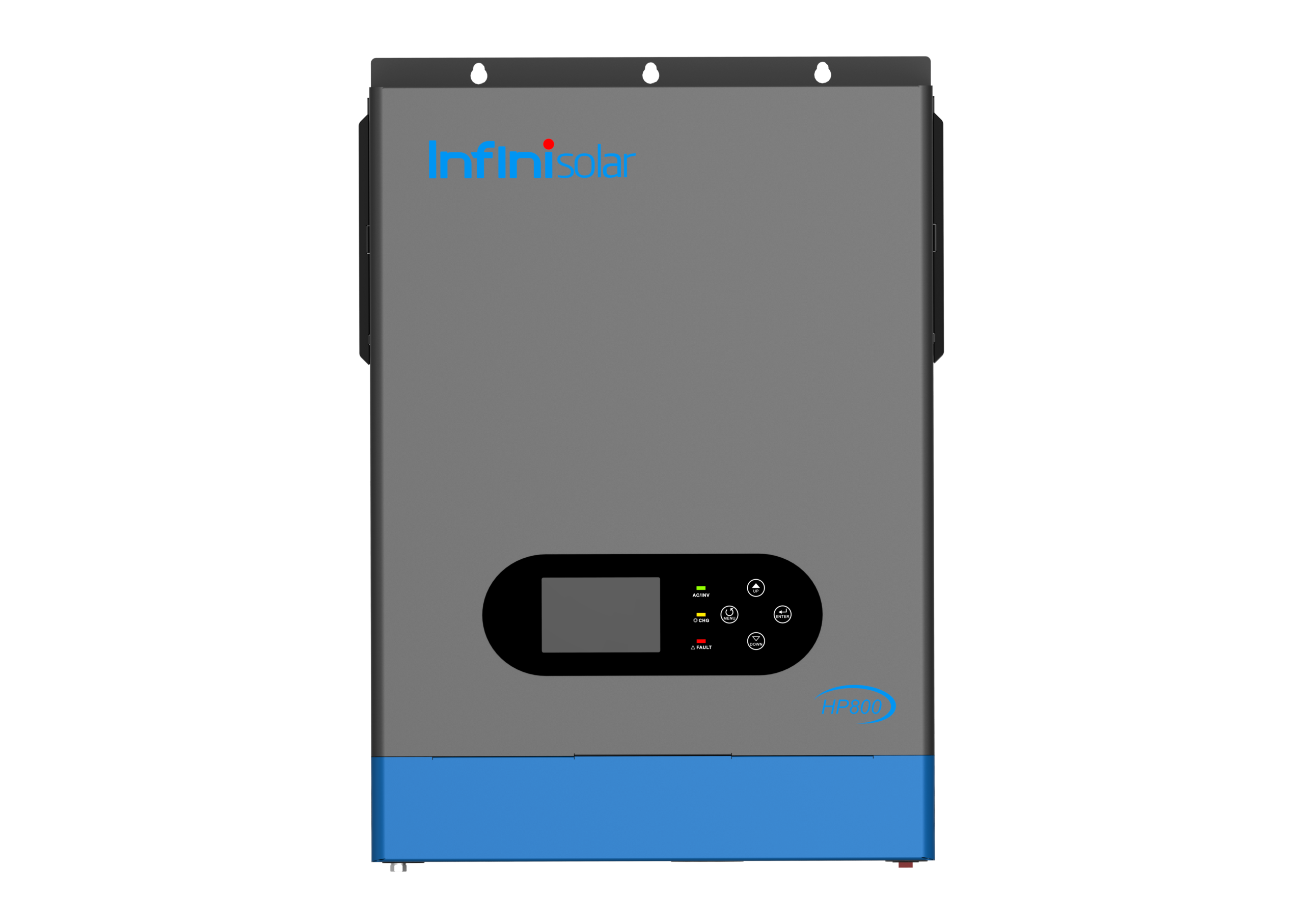

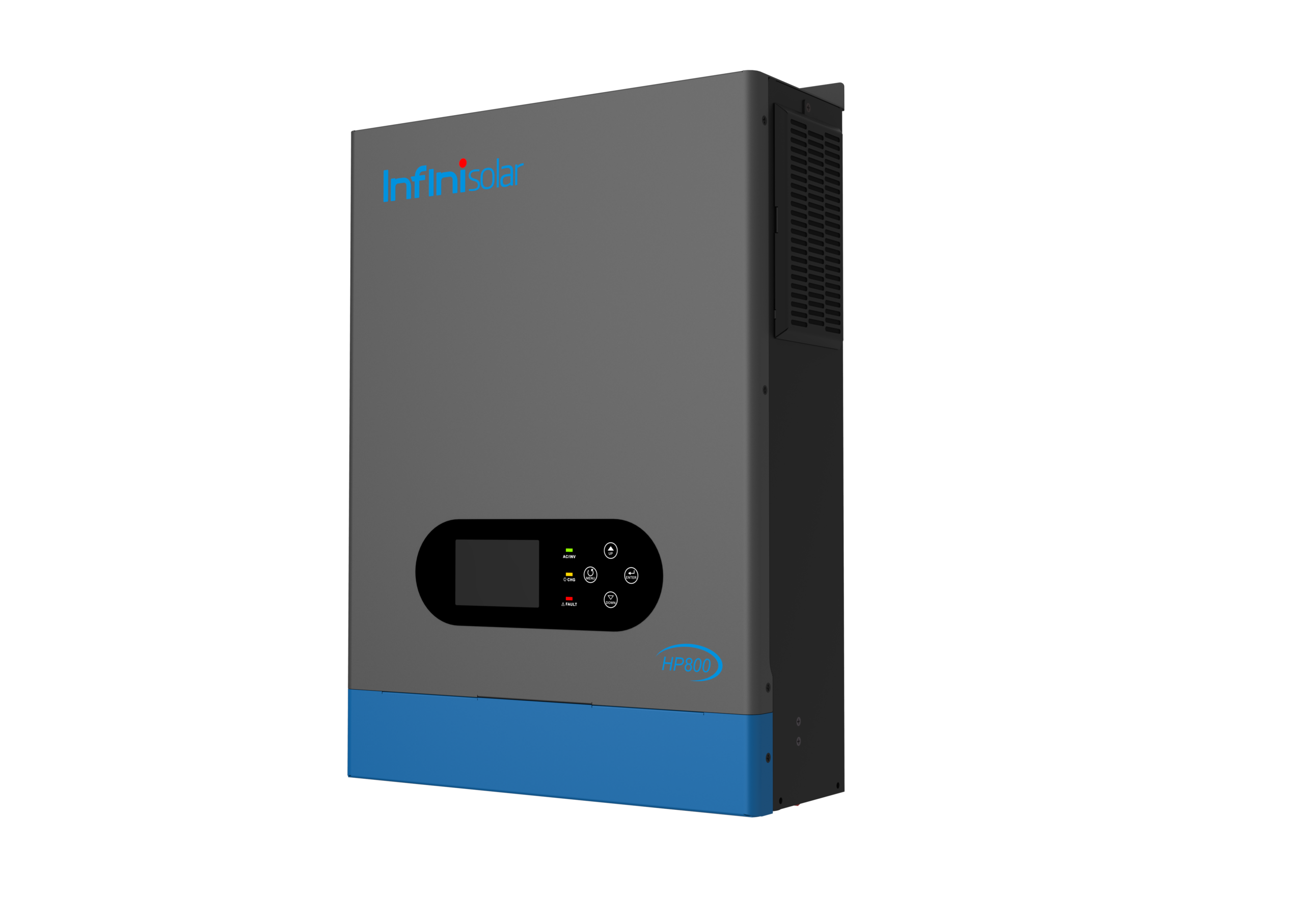

HP800 Off Grid Solar Inverter 2~12kW
High Frequency Inverter DC 24/48V | PV 400/450/500V | MPPT 80/100/120A
HP800 Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible
power support in portable size. HP800 Series can run without battery.
The Maximum PV input voltage can reach 400V/450V/500V, which can help customers make full use of solar energy.
Description
Product Description
■ Provide OEM Services: Appearance and Color
■ Complete Solar System for Sale (Optional)
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Wide PV input voltage range
■ Can provide the power to the load without battery

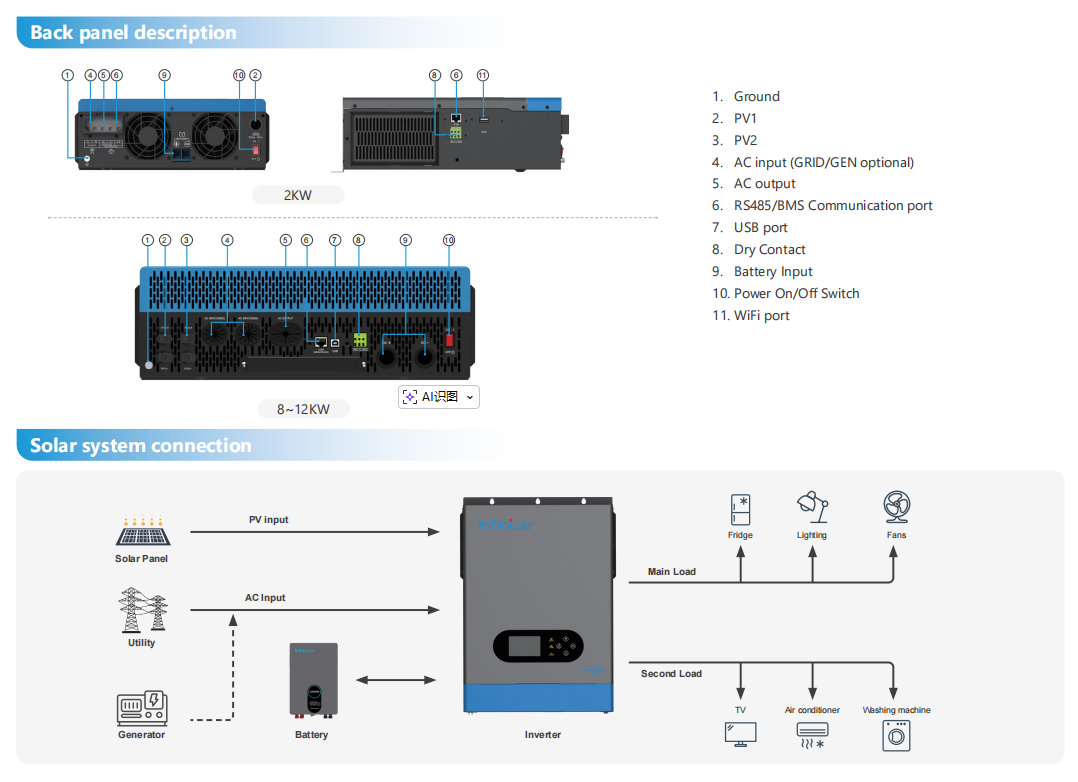

■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function

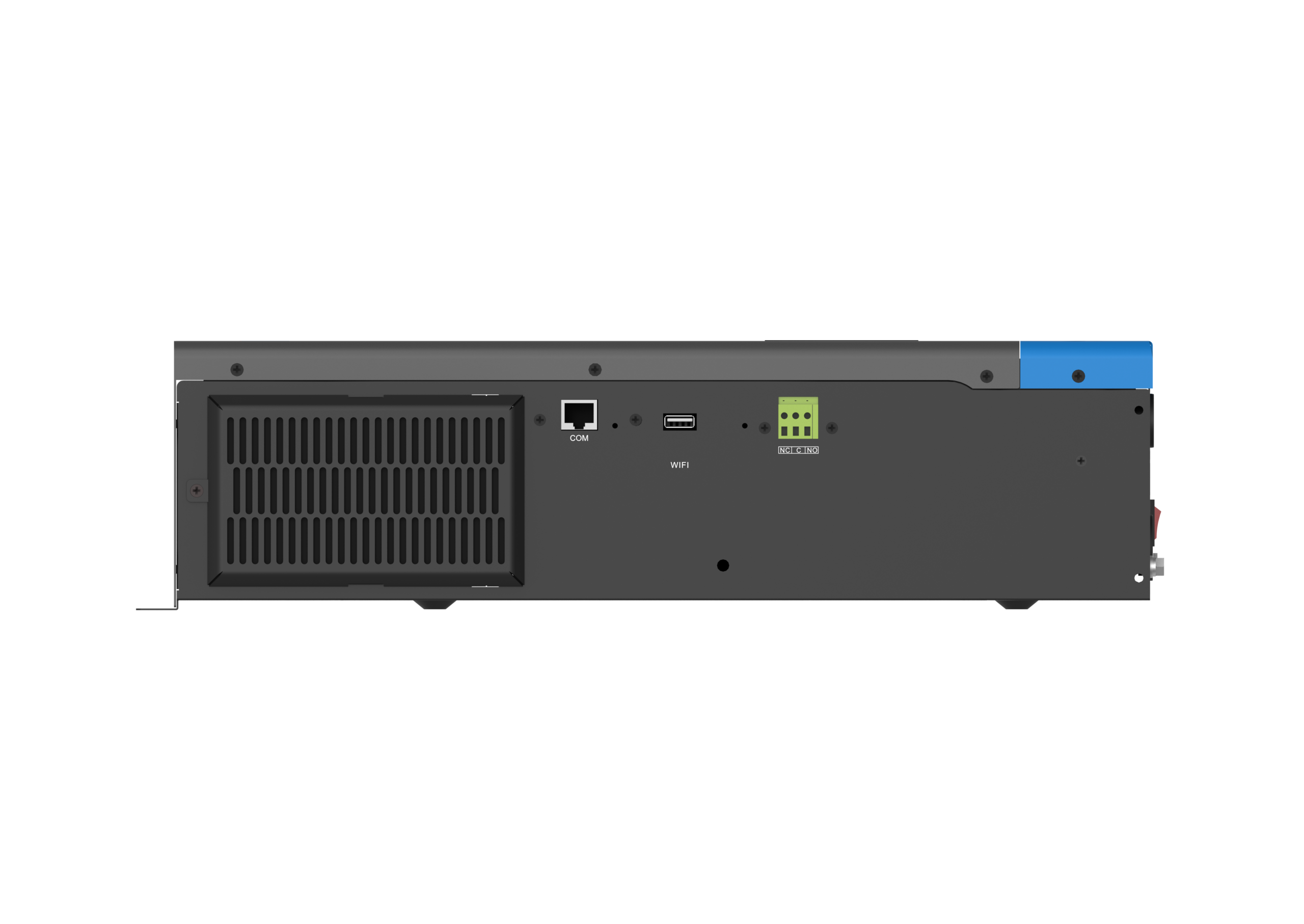

■ Support RS485,CAN monitoring function

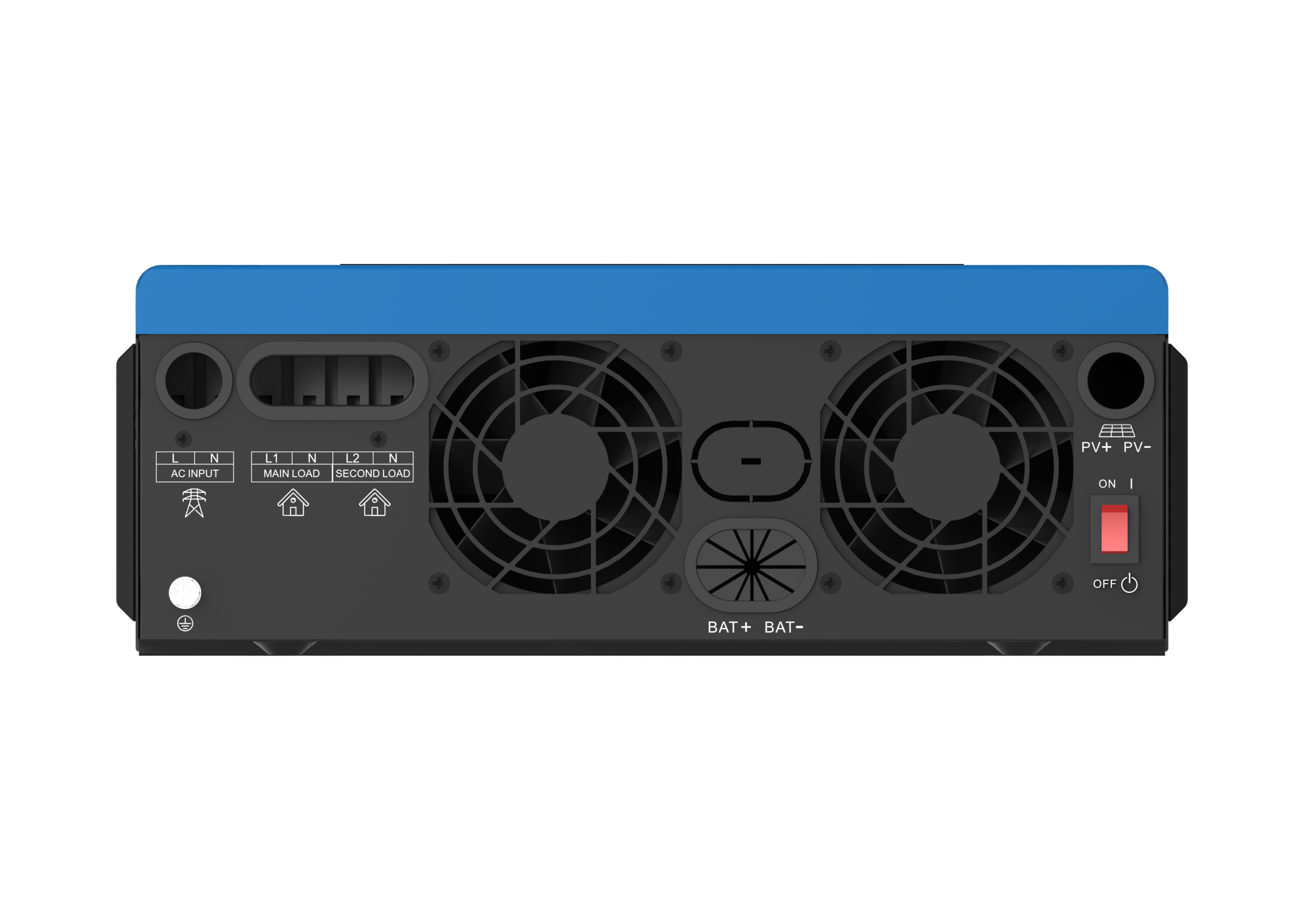

■ Dual outputs for smart load management
■ Can communicate with lithium batteries (CAN port)
| MODEL | HP800-2012 | HP800-3624 | HP800-4024 | HP800-6048 | HP800-6248 | HP800-8048 | HP800-10048 | HP800-12048 |
| Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||||||
| Rated Power (Main+Second Load) | 2000VA / 2000W | 3600VA / 3600W | 4000VA / 4000W | 6000VA / 6000W | 6200VA / 6200W | 8000VA / 8000W | 10000VA / 10000W | 12000VA / 12000W |
| Battery Mode (Main+Second Load) | 2000VA / 1600W | 3000VA / 3000W | 3500VA / 3500W | 5500VA / 5500W | 6200VA / 6200W | 8000VA / 8000W | 10000VA / 10000W(Battery current limited) | 12000VA / 12000W(Battery current limited) |
| Surge Power | 3200W | 6000W | 7000W | 11000W | 12400W | 16000W | 20000W | 24000W |
| Waveform | Pure sine wave | |||||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | |||||||
| Inverter Efficiency(Peak) | 90~93% | |||||||
| Transfer Time | 10ms(UPS / VDE4105) / 20ms(APL) | |||||||
| AC INPUT | ||||||||
| Voltage | 230VAC±5% | |||||||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | |||||||
| Frequency Range | 50Hz / 60Hz(Auto sensing) | |||||||
| BATTERY | ||||||||
| Normal voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Floating Charge Voltage | 13.7VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
| Overcharge Protection | 15VDC | 30VDC | 30VDC | 60VDC | 60VDC | 60VDC | 60VDC | 60VDC |
| SOLAR CHARGER & AC CHARGER | ||||||||
| Maximum PV Array Open Circuit Voltage | 400VDC | 400VDC | 450VDC | 450VDC | 500VDC | 500VDC | 500VDC | 500VDC |
| Maximum PV Input Current | 16A | 18A | 18A | 28A | 28A | 18A*2 | 27A*2(40A max) | 27A*2(40A max) |
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | |||||||
| Maximum PV Array Power | 2000W | 4000W | 4000W | 6000W | 6200W | 4000W*2 | 5000W*2 | 6000W*2 |
| PV Array MPPT Voltage Range(Typ.) | 30~320VDC | 60~360VDC | 120~450VDC | 90~450VDC | ||||
| Maximum Solar Charge Current | 80A | 100A | 100A | 100A | 120A | 120A | 150A | 150A |
| Maximum AC Charge Current | 80A | 60A | 60A | 100A | 100A | 120A | 150A | 150A |
| Maximum Charge Current | 80A | 100A | 100A | 100A | 120A | 120A | 150A | 150A |
| MECHANICAL SPECIFICATIONS | ||||||||
| Machine Dimension (W*H*D)(mm) | 290*367*111 | 318*454*122.5 | 425*527*145 | |||||
| Package Dimension (W*H*D)(mm) | 446*187*394 | 544.5*200*410 | 631.5*257*548 | |||||
| N.W(kg) | 6 | 7.8 | 8.0 | 9.0 | 10.0 | 17.9 | 18.0 | 18.0 |
| G.W(kg) | 7.2 | 9.3 | 9.5 | 10.2 | 11.6 | 20.5 | 20.6 | 20.6 |
| OTHER | ||||||||
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) | |||||||
| Operating Temperature | -10°C~50°C | |||||||
| Storage Temperature | -15°C -60°C | |||||||
| Communication Interface | USB/WIFI/RS-485/CAN | |||||||
| Warranty | 2 year | |||||||
| Anti-dust Kit | none | yes | yes | yes | yes | yes | yes | yes |
| CERTIFICATION & STANDARDS | ||||||||
| CE | ||||||||
