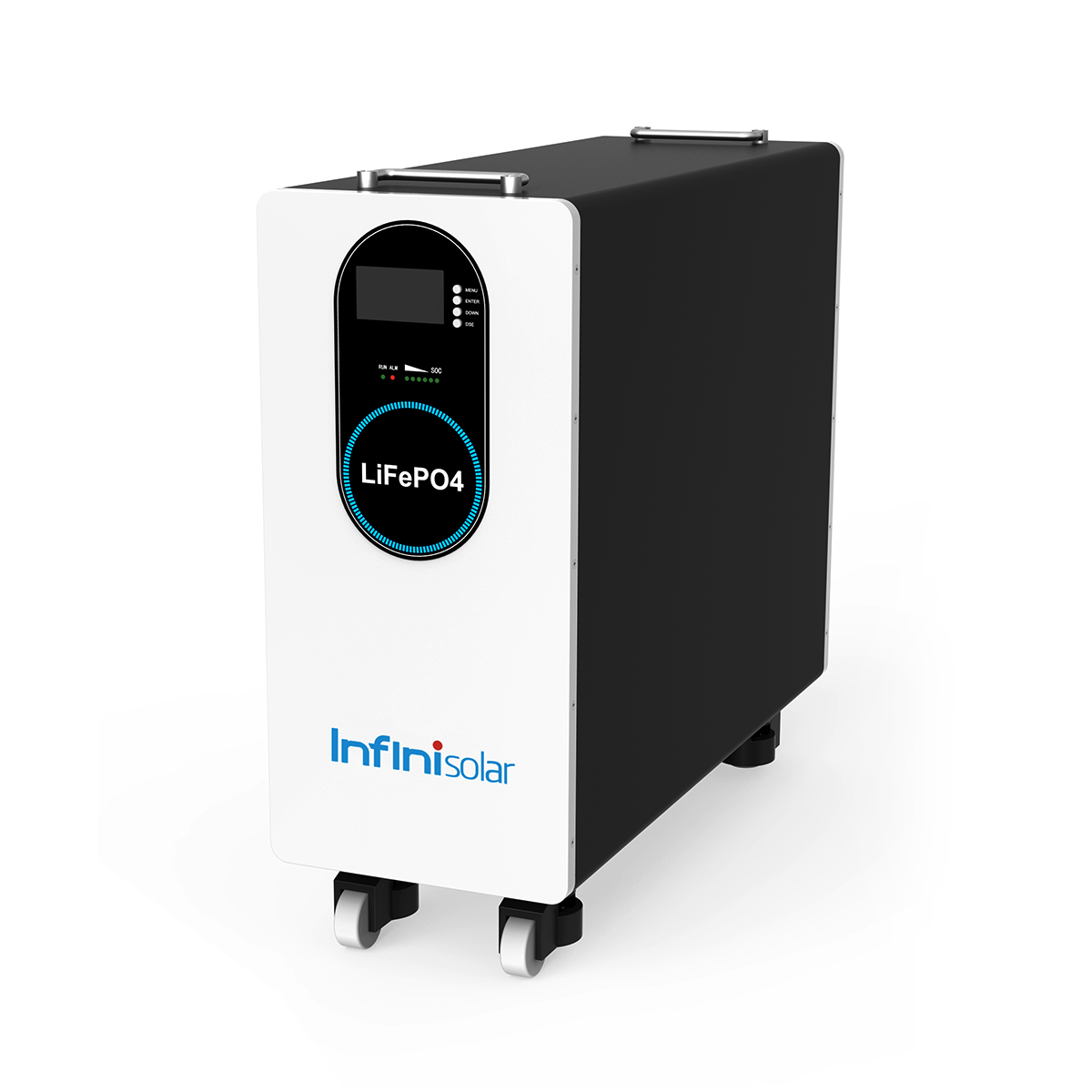

INF-LFT LiFePO4 Battery 51.2V-280/300Ah
Lithium (LFP) Battery | 14.3kWh/15.3kWh/16.3kWh
INF-LFT Series is a lithium battery specially designed for residential applications with superior performance. Compatible with INFINISOLAR PV/ EP/PH inverters series, one-stop-shop solution can be designed with LP2100 series, save you precious time and money, ideal solution for large home and small commercial with strong capacity 14.3kWh/15.3kWh/16.3kWh.
Description
Product Description
■ Remote diagnosis & update
■ Auto reboot after undervoltage
■ Built-in WiFi Smart Module
■ 15 Units in parallel maxium
■ 8KW continous/module, 10KW @10s peak/module
■ Longer cycle life ≥6000(25°C+2°C,80%DOD,70%EOL)
■ Support CAN & RS485 communication with mainstream inverters
| Technical Data | INF-LFT-48280 | INF-LFT-48300 | INF-LFT-48320 | ||
| Nominal Voltage | 51.2V | ||||
| Nominal Capacity | 280Ah | 300Ah | 320Ah | ||
| Nominal energy | 14336Wh | 15360Wh | 16384Wh | ||
| Max. output power | 10kW | 10kW | 10kW | ||
| Life Cycles | ≥6000(25°C+2°C,80%DOD,70%EOL) | ||||
| Recommended Charge Voltage | 57.6V | ||||
| Recommended Charge Current | 56A | 60A | 60A | ||
| End Of Discharge Voltage | 44V | ||||
| Standard Charge Current | 56A | 60A | 60A | ||
| Standard Discharge Current | 140A | 150A | 150A | ||
| Maximum Continuous Charge Current | 200A | 200A | 150A | ||
| Maximum Continuous Discharge Currentt | 200A | 200A | 150A | ||
| BMS Cut-Off Voltage Charge | 58.4 V (3.65V/Cell) | ||||
| BMS Cut-Off Voltage Discharge | 44.0V (2s) (2.75V/Cell) | ||||
| Temperature Charge | 0 ~ 50°C | ||||
| Temperature Discharge | -20 ~ 60°C | ||||
| Storage Temperature | -5~35°C | ||||
| Shipment voltage | ≥51.2V | ||||
| Module Parallel | Up to 15 units | ||||
| Communication | CAN2.0/RS232/RS485 | ||||
| Case Material | SPCC | ||||
| Machine Dimension (H*W*D) (mm) | 260*733*633 | ||||
| Package Dimension (W*H*D) (mm) |
wooden box | 440*870*720 | |||
| N.W (kg) | 118 | ||||
| G.W (kg) | wooden box | 138 | |||
| * Variations in dimensions and weights may occur due to production batches. | |||||
| Charge Retention And Capacity Recovery Capability | Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention rate≥90%, Recovery rate of charge≥90% |
||||
| Warranty | 5 years | ||||
| Certification & Standards | CE-EMC(EN 61000-6-3: 2007+A1: 2011+AC: 2012 EN IEC 61000-6-1: 2019) UN38.3/ MSDS / IEC62619:2017 |
||||
