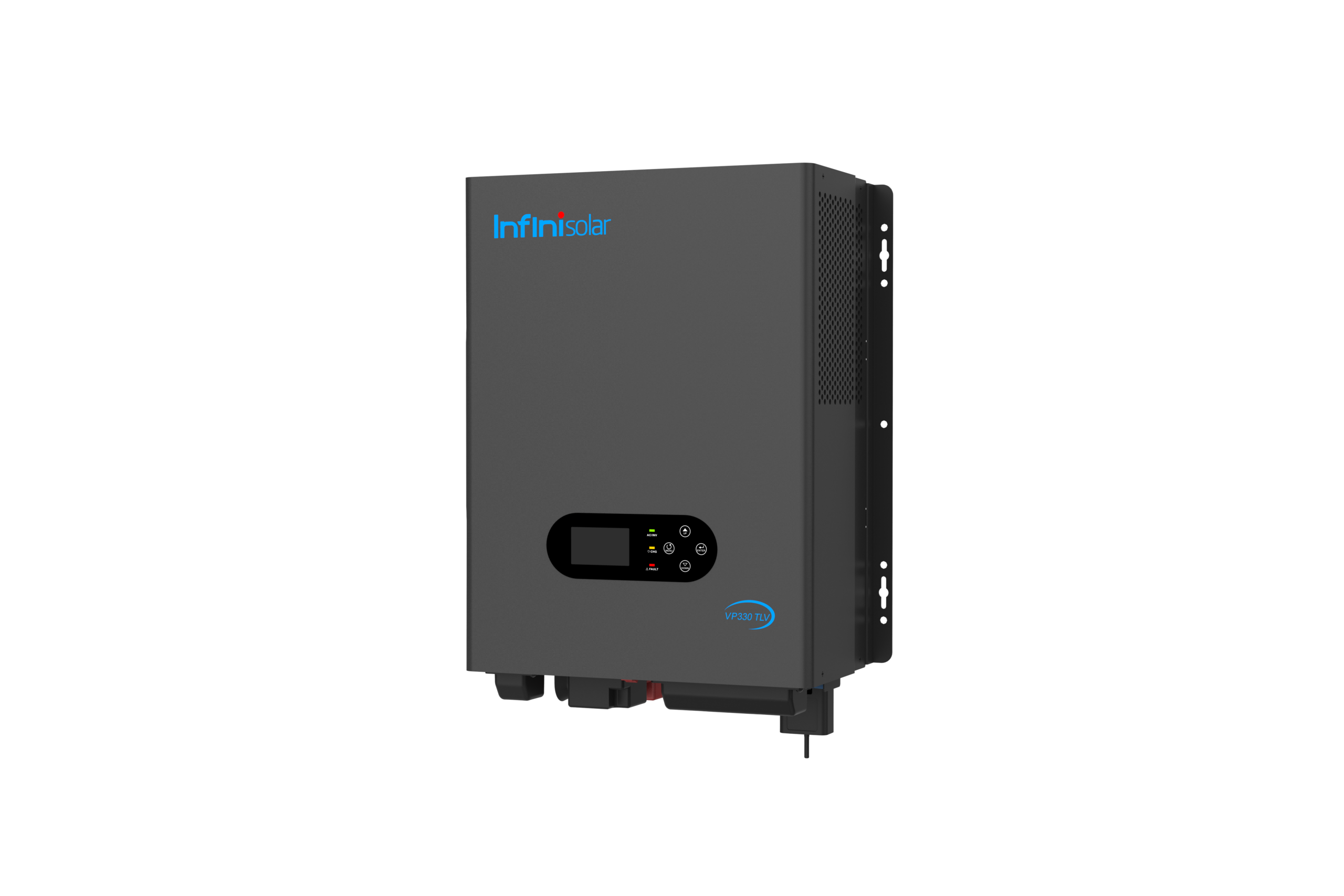

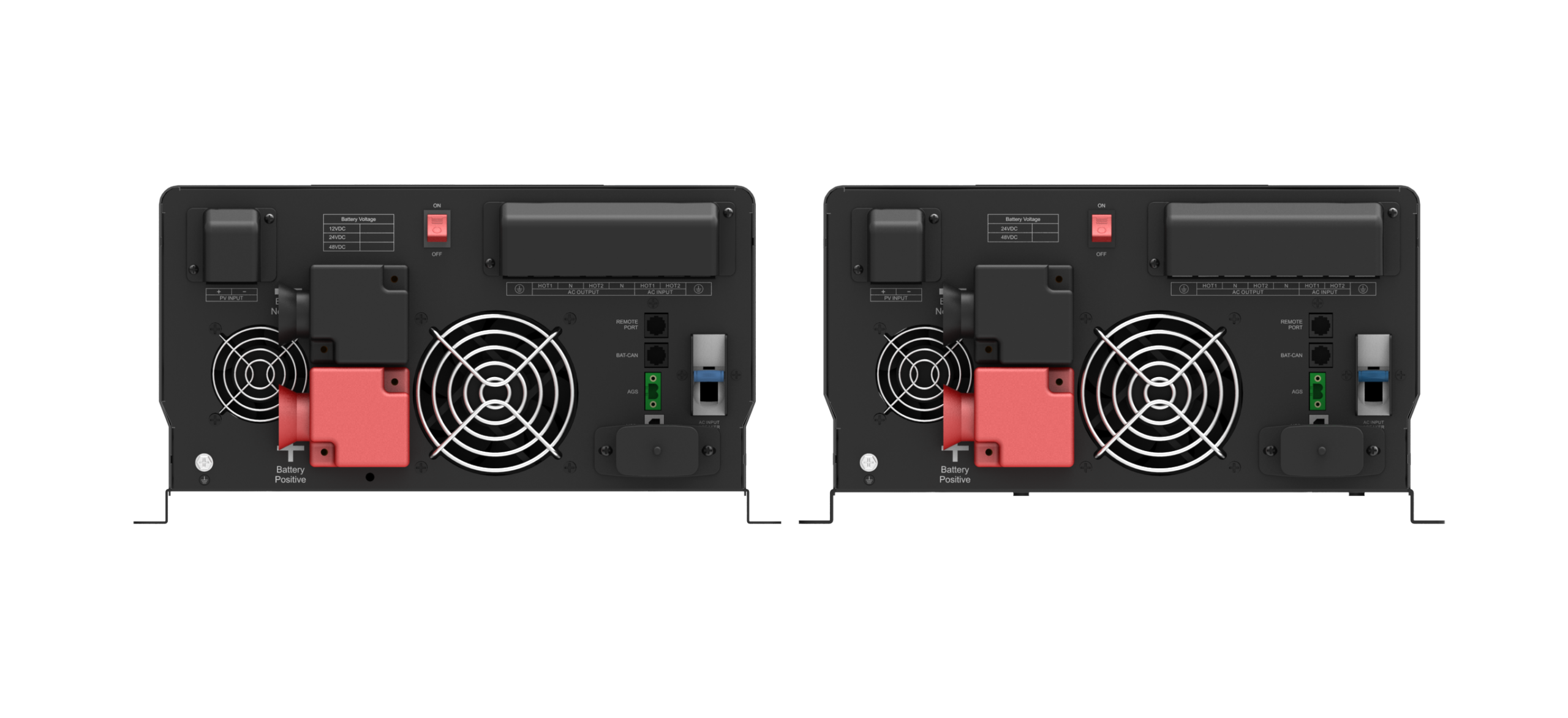

VP330 TLV Off Grid Solar Inverter 3-6kW
Low Frequency Inverter | DC 12/24/48V | PV 245V
This split phase solar inverter VP330 TLV series, capacity range from 3KW-6KW, DC24V/48V, it’s applicable to 110VAC/120VAC markets demands, which has AC output of single phase 110VAC/120V, split phase 220V/240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design best use based on different loads applications; meanwhile, it has built-in MPPT solar charge controller 80A, you can take
use of sunshine freely and save electricity bills.

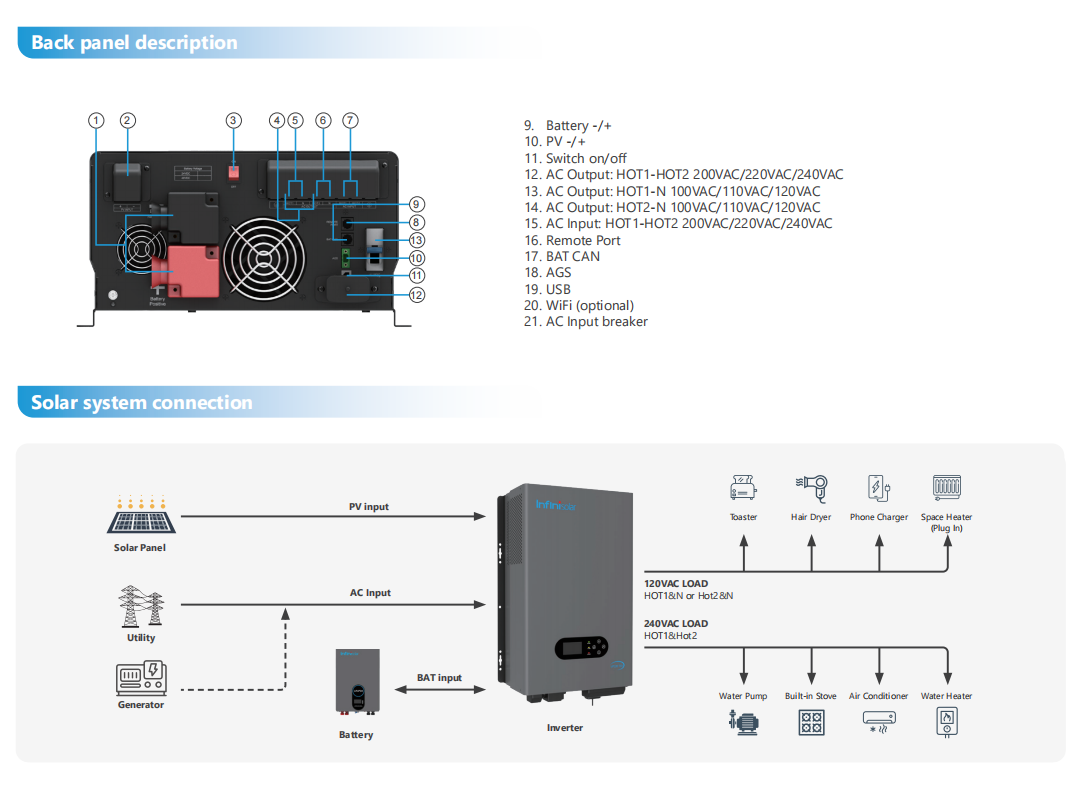

Description
Product Description
■ 3 Steps charging
■ Overload and short-circuit protection
■ Set charging voltage/charging current
■ Battery low voltage shutdown point can be set to 10/10.5/11/11.5/12V
■ Power-save mode
■ Set utility priority /battery priority
■ Set utility input wide/narrow voltage range
■ Inverter voltage can be set to 220V/230V/240V
■ Inverter frequency can be set to 50Hz/60Hz
■ Set utility charging on/off switch
■ Inbuilt 80A MPPT Solar Charge Controller
■ Acid or Lithium Select
■ WIFI remote monitoring (optional)
■ With BMS lithium battery communication function (CAN port)
| MODEL | VP330-3024TLV | VP330-3048TLV | VP330-4024TLV | VP330-4048TLV | VP330-5048TLV | VP330-6048TLV | |
| INVERTER OUTPUT | |||||||
| Rated Power | 3 KW | 4 KW | 5 KW | 6 KW | |||
| Power factor | 1 | ||||||
| Wave form | Pure sine wave | ||||||
| Output voltage RMS | 100V / 110V / 120VAC (200V / 220V / 240VAC) ±10% | ||||||
| Output frequency | 50Hz or 60Hz (±0.3Hz) | ||||||
| Inverter efficiency (peak) | >85% | ||||||
| Line mode efficiency | >95% | ||||||
| Overload | 100%<Load<110% (alarm 5min then stop outputand fault code 07) 110%<Load<125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07) |
||||||
| Surge rating | 9000VA | 12000VA | 15000VA | 18000VA | |||
| Capable of starting electric motor | 1.5P | 2P | 3P | ||||
| BATTERY | |||||||
| Battery voltage | 24VDC/48VDC | 48VDC | |||||
| Minimum start voltage | 10V/ 10.5V/ 11V/ 11.5V/ 12V±0.5V; 12VDC×2 for 24V; ×4 for 48VAC | ||||||
| Low battery cut of | low voltage fault code 04 (10V/ 10.5V/ 11V/ 11.5V/ 12V) for 12V model (21V/21V /22V/ 23V/ 24V) for 24V model (40V/ 42V/ 44V/ 46V/ 48V) for 48V mode |
||||||
| Low battery alarm | Add 0.5/battery: (low battery alarm one second one time) (10V/ 10.5V/ 11V/ 11.5V/ 12V) +0.5VDC for 12V model (21V/ 21V/ 22V/ 23V/ 24V) +1VDC for 24V model (40V/ 42V/ 44V/ 46V/ 48V) +2VDC for 48V model |
||||||
| High voltage alarm | Add +1V/battery: (high voltage one second one time / after 30s fault 03) (12-14.5V) +1VDC for 12V model (24-29V) +2VDC for 24V model (48-58V) +4VDC for 48V model |
||||||
| Save mode | Load ≤40W(110V) / 80W(220V) | ||||||
| AC INPUT MODE | |||||||
| Input waveform | Pure sine wave | ||||||
| Nominal input voltage | 200Vac / 220Vac / 240Vac | ||||||
| Max input voltage | 270Vac MAX | ||||||
| Input frequency | 50Hz / 60Hz (auto sensing) | ||||||
| Efficiency (AC mode) | >95% (load, full battery) | ||||||
| Transfer time AC to DC | 15ms(typical) | ||||||
| SOLAR CHARGER | |||||||
| Maximum PV Array Power | 2500W | 5000W | 2500W | 5000W | 5000W | 5000W | |
| Maximum PV Charge Current | 80A±4A | ||||||
| DC Voltage | 24V / 48V | 24V / 48V | |||||
| MPPT Range @ Operating Voltage | 30~230VDC @ 24V /60~230VDC @48V | 60~230VDC @48V | |||||
| Maximum Solar Input Voltage | 245±2Vdc | 245±2Vdc | |||||
| Maximum Efficiency | >98% | ||||||
| Standby Power Consumption | <2W | ||||||
| CHARGE MODE | |||||||
| Max charge current (±5A) | 12V | / | / | / | / | ||
| 24V | 40A | 60A | / | / | |||
| 48V | 20A/td> | 30A | 35A | 40A | |||
| Min charge current 10A. Change by every 5A | |||||||
| DIMENSIONS | |||||||
| Machine Dimension (W*H*D)(mm) | 359.2*443*188 | 362*544*188 | |||||
| Package Dimension (W*H*D)(mm) | 598*308*457 | 698*308*457 | |||||
| N.W(kg) | / | ||||||
| G.W(kg) | / | ||||||
| Standard Warranty | 2 year | ||||||
| CERTIFICATION & STANDARDS | |||||||
| CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2) | |||||||
